Entirely New.
Measurably Better.

Introducing Cella—the world’s most sound absorbent acoustic baffles. More than incremental, Cella baffles’ revolutionary, patented technology provides exponentially better sound absorption than any other acoustic baffles.

The hard surfaces of traditional baffles are useful for redirecting and restraining (aka, “baffling”) the flow of sound energy, but they’re quite poor at absorbing sound energy.

The clean, natural aesthetics of Cella Baffles belie their highly engineered, entirely unique construction.

Beyond Baffling

Even baffles that claim to absorb sound —such as felt, fabric and foam— are surprisingly ineffective, demonstrating notorious discrepancies between their performance in laboratory tests and their performance in actual, real-world installations.

Cella Acoustic Baffles provide such excellent performance; just one side of a Cella baffle is more sound absorbent than an entire felt, foam, or metal acoustic baffle.

Baffles-SweetGreen-square-1903
Baffles-4SeasonsGrid-square-1904
Baffles-KellerCenter-square-1903
Baffles-Nexus-square-1905
Baffles-JWMarriott-square-1903
Previous
Next


Cella Acoustic Baffles'
Unique Advantages.

icon4 microperf - Cella Acoustic Baffles

MicroPerfection® Technology

A groundbreaking method of sound absorption that increases effectiveness as noise levels rise.
icon3 SPCore - Cella Acoustic Baffles

Patented SPCore™ Technology

The reason why Cella Acoustic Baffles are remarkably stronger, more stable, and weigh significantly less than traditional wood baffles.
icon4 nrc - Cella Acoustic Baffles

Unmatched Absorption

Cella Baffles are the
industry’s most sound absorbent acoustic baffles. They provide measurably better performance
than fabric, foam, felt, metal or
fiber-based baffles.

icon3 guarantee - Cella Acoustic Baffles

Guaranteed Performance

Cella Acoustic Baffles are the only baffles with a guarantee to perform as well in real-world installations as they do in their laboratory tests.

install panels icon 1812 - Cella Acoustic Baffles

Easy & Versatile Installation

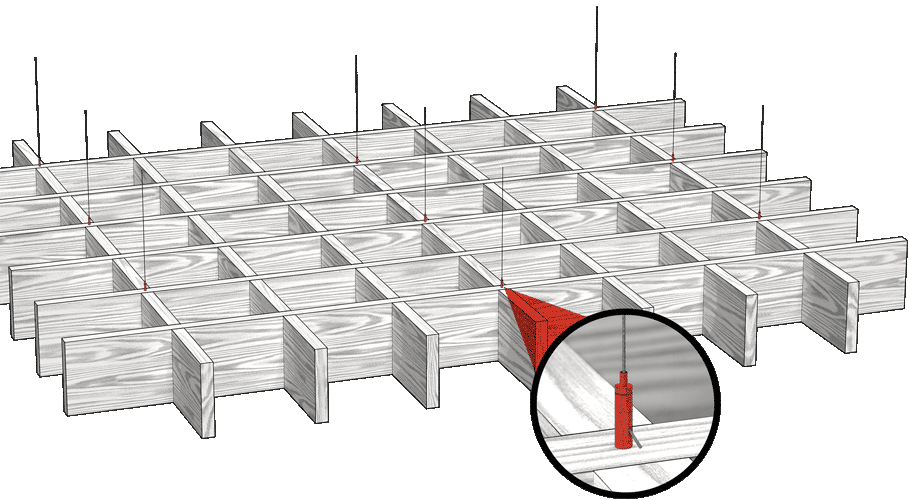

Cella Baffles can be mounted directly to a ceiling, suspended with cables, or attached to a grid.

CELLA BAFFLES INSTALLATION OPTIONS

Strut Channel
using Lag Screws

A simple secure system designed for attaching Cella Baffles to standard strut channels. The system instals quickly and allows for complete flexibility with baffle spacing.

Cable Suspension
using Adjustable Coupler

The light weight and high strength of Cella Acoustic Baffles allows for a variety of direct suspension methods that are inconspicuous, simple to install, and easy to adjust.

CELLA BAFFLES CORE OPTIONS

ITEMDESCRIPTIONSTANDARD HEIGHTS
(nominal)		STANDARD LENGTHS
(nominal)		NRC
(per side)		FIRE
CLASS
LR PANEL SERIESExcellent Acoustic Performance • Lower Price Point vs. RF Series • Antimicrobial & Moisture Resistant Properties
BA-LRL381 1/2″ Thick Acoustic Baffles6″ 8″ 12″ 24″48″ 96″ 120″ 144″.70A
BA-LRL512″ Thick Acoustic Baffles6″ 8″ 12″ 24″48″ 96″ 120″ 144″.80A
RF PANEL SERIESSuperior Acoustic Performance • CDPH1350 Compliant (low VOC)
BA-RFR381 1/2″ Thick Acoustic Baffles6″ 8″ 12″ 24″48″ 96″ 120″ 144″.70A
BA-RFR512″ Thick Acoustic Baffles6″ 8″ 12″ 24″48″ 96″ 120″ 144″.90A
Custom baffle heights and lengths available. * 144” length subject to veneer availability.

Wood Species

(A small sampling of the 715+ genuine wood species/slice/grade combinations in stock.)

AnegreQuarterSlice 1903 large - Cella Acoustic Baffles

Anegre

Quarter Slice

DouglasFirQuarterSlice 1903 large - Cella Acoustic Baffles

Douglas Fir

Quarter Slice

EuroBeechQuarterSlice 1903 large - Cella Acoustic Baffles

European Beech

Quarter Slice

MakorePlainSlice 1903 large - Cella Acoustic Baffles

Makore

Plain Slice

SmokedEucalyptus 1903 large - Cella Acoustic Baffles

Smoked Eucalyptus

Quarter Slice

MaplePlainSlice 1903 large - Cella Acoustic Baffles

Maple

Plain Slice

TeakBurmese 1903 large - Cella Acoustic Baffles

Burmese Teak

Plain Slice

WhiteOakRiftSlice 1903 large - Cella Acoustic Baffles

White Oak

Rift Slice

WalnutPlainSlice 1903 large - Cella Acoustic Baffles

Walnut

Plain Slice

WengeQuarterSlice 1903 large - Cella Acoustic Baffles

Wenge

Quarter Slice

Specialty Finishes

ArcticOak 1903 large - Cella Acoustic Baffles

Arctic Oak

CiderRiftOak 1903 large - Cella Acoustic Baffles

Cider Rift Oak

VintageOak 1903 large - Cella Acoustic Baffles

Vintage Oak

IronRiftOak 1903 large - Cella Acoustic Baffles

Iron Rift Oak

SaddleOak 1903 large - Cella Acoustic Baffles

Saddle Oak

OakSawcut large - Cella Acoustic Baffles

Sawcut Oak

Natural

OakSawcutWashed 1903 large - Cella Acoustic Baffles

Sawcut Oak

Washed

ArcticWhite 1903 large - Cella Acoustic Baffles

Arctic White

BlackoutAsh 1903 large - Cella Acoustic Baffles

Blackout Ash

CustomStains 1903 large - Cella Acoustic Baffles

Custom Stains

FullColorSpectrum 1903 large - Cella Acoustic Baffles

Full Spectrum of
Paint Colors

UV Printing 1903 large - Cella Acoustic Baffles

UV Printing up
to 1080dpi

CELLA BAFFLES SPECIFICATIONS

MATERIAL

Acoustic Ceiling Baffles constructed of two fully sealed, resonant cavities overlayed with 2mm thick micro-perforated multi-ply surfaces.

FACE OPTIONS

Clear or Tinted Catalyzed Lacquer
Clear or Tinted Ulti-Matte™ Flat Varnish

FINISH OPTIONS

Hanging kits to be ordered separately.

WEIGHT

BA-LRL51 (2” thick LR Series) 3.2 lbs/ft² BA-RFR38 (1½” thick RF Series) 2.5 lbs/ft² BA-RFR51 (2” thick RF Series) 3.2 lbs/ft²

FIRE PERFORMANCE

Cella Baffles contain a non-combustible fiberglass core. A thin (less than .025 inches) layer of veneer, paint, or film finish is applied. Depending on the use and the type of wood selected, Cella Baffles can be used in Class A environments (IBC Chapter 8. Section 803).

LEED CREDITS

LR RFMRc4 Recycled Content
LR Series – 21% pre-consumer
RF Series – 30% post-consumer

LR RFBDCv4  EQ Acoustic Performance

LR RFEQ 4.4 Low Emitting Materials

LR RFMaterial Ingredient Disclosure – Option 1

DOWNLOADABLE DOCUMENTS

Visit the Document Resources page for all downloadable documents.
