Vice Acosutic V Shaped Baffles

Vice
Acoustic V-Shaped Baffles

Vivid and punctuated to make a bold statement.
Experience performance beyond baffling.

Patented core technology provides exponentially better sound absorption than any other acoustic baffle. Real wood veneer ensures long term durability and sustainability. Suspended and direct mounting options make it simple to upgrade a preexisting space and enhance a new design. Create a stunning pattern that upgrades plain ceilings into an organic acoustic sculpture.

Documents

    CAD & Details

    Files coming soon.

      Can’t find a file or document that you are looking for? Contact us.

      Veneer. Real Wood.

      Classic. Natural. Luxurious. Sustainable. All SoundPly products are made with real wood veneer which is a timeless design element that enhances any room. Our Eureka! Innovation Award winning standards ensure the veneer is perfect in every location and used to its fullest potential. Wood remains the most sustainable building material due to its renewability and biodegradability over time. The enduring appeal increases the likelihood of reuse and extends the product lifecycle, contrasting sharply with the shorter usable life of plastic or faux wood alternatives. Choose from 700+ real wood species, slices, grades, and finishes or match to any paint or stain for practically unlimited possibilities.

      Grow your knowledge in wood →

      Hundreds of Real Wood Veneers

      Patented SPCore™ Technology Choices

      This technology is a combination of pressure and heat to fuse the outer layers to the inner core’s structural components. The result is a uniformly sealed, torsionally rigid, monocoque structure that is remarkably stronger, more stable, and weighs significantly less.

      RF Series: The glasswool core is predominantly made from recycled glass and includes a patented, environmentally friendly organic binder, emphasizing our commitment to sustainable production practices.

      LR Series: The rockwool core incorporates upcycled slag from the aluminum industry, utilizing waste materials beneficially.

      Patented Core Technology

      Vice Core Options

      Core Type
      RF Series
      Resin-Reinforced Glass Fiber
      LR Series
      Lava Rock Mineral Wool
      Fire Rating
      ASTM E-84, Class A
      Humidity
      Moisture Resistant
      Low VOC
      CDPH 1350 Compliant
      Superior Acoustics
      BDCv4
      Recycled Material
      MRc4
      30% Post-Consumer
      21% Pre-Consumer
      Price Range
      $$$
      $$

      0.75”
      RF-M19
      LR-M19
      Weight (lbs/ft²)
      2.2
      2.0
      1”
      RF-M25
      LR-M25
      Weight (lbs/ft²)
      1.6
      2.3
      1.5”
      RF-M38
      LR-M38
      Weight (lbs/ft²)
      3.0
      2.8
      2”
      RF-M51
      LR-M51
      Weight (lbs/ft²)
      3.3
      3.6

      Acoustic Facts

      Leg Length
      Spacing
      NRC
      SAA
      Array NRC
      Array SAA
      ASTM E795
      Mounting
      Report #
      6”
      n/a
      1.05
      1.04
      –
      –
      A
      23-10047
      6”
      3-5/8”
      –
      –
      0.65
      0.61
      JV-MOD
      23-10059
      12”
      n/a
      1.00
      1.00
      –
      –
      A
      23-10046
      12”
      4″
      –
      –
      0.75
      0.75
      JV-MOD
      23-10045

      Don’t compromise aesthetics for acoustic treatment. Hide superior acoustic absorption in wood. SoundPly’s clean, microscopic perforations produce no discernible effect on the overall color or grain structure, unlike the grooved, slotted or perforated acoustic products produced by other manufacturers. At just an arm’s length the millions of tiny micro-perfections become visually imperceptible. We call it MicroPerfection. Unlock the designs of your dreams.

      Learn how SoundPly absorbs sound and reflects beauty →

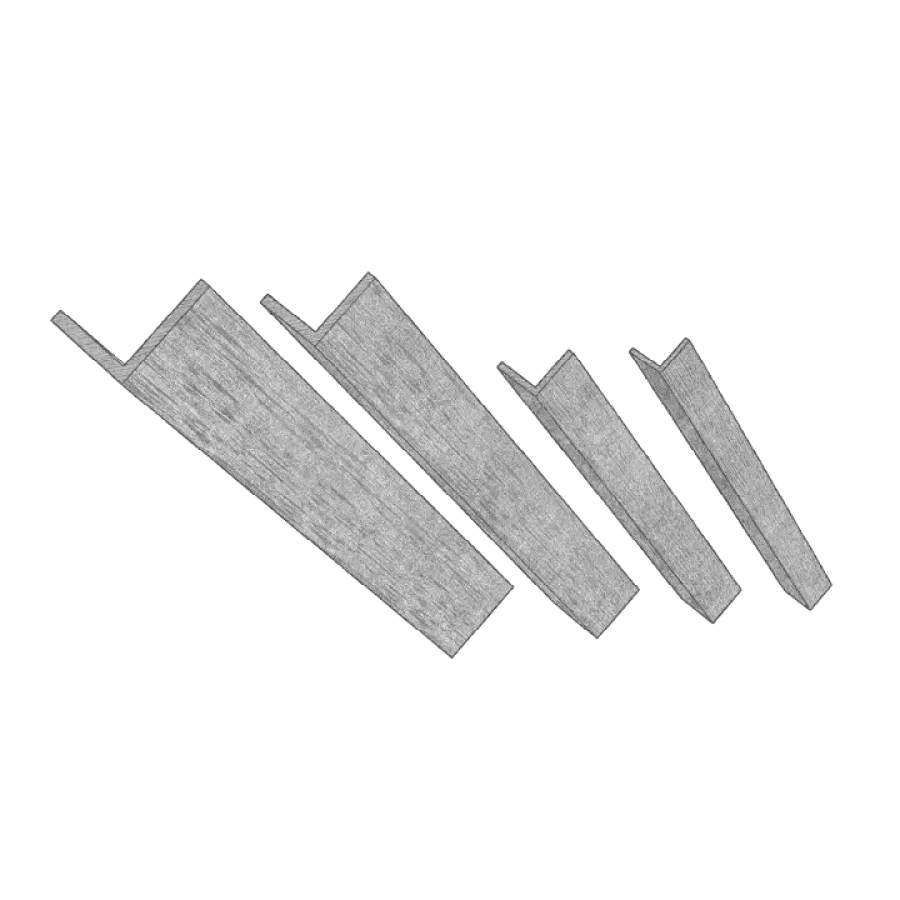

      Standard Sizing

      There are a variety of standardized sizes to suit the needs of different spaces and applications. The range of colors and finishes seamlessly integrate with any interior design. This standardization makes it easy to source, simple to install, and customizable to the unique acoustics of each space. Standard sizes offer an effective, aesthetically pleasing solution for optimizing the soundscape of a room. Custom sizes are available but will cost more and may take longer to manufacture.

      Nominal
      Leg Lengths: 6”, 10”, 12”, 15”, up to 24”
      Lengths:       48”, 60”, 96”, 120”, 144”
      Custom sizing available.

      Vice Baffle Sizing Options

      Mounting Options

      See hardware details for more options and DWGs.

      Suspended
      Direct Mount

      Performance

      Perforations

      MicroPerfection® Technology is a groundbreaking method of sound absorption that increases effectiveness as noise levels rise. The result is a more comfortable, natural feeling environment.

      See our Acoustic Performance for Baffle Arrays

      Patented Sound Reduction Technology

      WELL Building

      CARB Compliant
      CDPH / CHPS 01350 Compliant
      Health Product Declaration (HPD)
      Low Emitting/Low VOC
      Recycled Content – Post-Consumer
      Forest Stewardship Council (FSC) Certified
      Recycled Content

      Sound
        S04 Reverberation Time
        S05 Sound Reducing Surfaces

      Materials
        X05 Enhanced Material Restrictions
        X06 Volatile Organic Compound
        Restrictions

      LEED Credits

      MRc4 Recycled Content
      BDCv4 EQ Acoustic Performance
      EQ 4.4 Low   Emitting Materials
      MR Recycled Content
      MR Material Ingredients
      EA Optimized Energy Performance
      EQ Enhanced Acoustical Performance
      EQ Interior Lighting
      EQ Daylight
      EQ Low Emitting Materials (RF core)

      Fire Performance

      SoundPly products satisfy ASTM E84 Class A as well as Canadian ULC S102 fire ratings allowing you to turn down sound and turn up results anywhere in North America.

      Cleanable

      SoundPly products have 3 simple and effective cleaning methods (wipe, spray & UV). Refer to the Maintenance PDF for more details.
