Alta Acoustic Ceiling Panels

Alta

Acoustic Ceiling Panels

Nothing Else is Quiet Like These. Disrupt the status quo.

Real wood veneer combined with patented core technology creates the world’s most beautiful and highest performing acoustic ceiling. No plenum space or blanket of acoustic insulation. Unmatched acoustic performance guaranteed to be accurate and reliably reproducible in real-world installations. Five installation options, full accessibility and easy light integration ensures full design freedom and unmatched beauty.

Documents

    CAD & Details

    Can’t find a file or document that you are looking for? Contact us.

    Patented SPCore™ Technology Choices

    This technology is a combination of pressure and heat to fuse the outer layers to the inner core’s structural components. The result is a uniformly sealed, torsionally rigid, monocoque structure that is remarkably stronger, more stable, and weighs significantly less.

    RF Series: The glasswool core is predominantly made from recycled glass and includes a patented, environmentally friendly organic binder, emphasizing our commitment to sustainable production practices.

    LR Series: The rockwool core incorporates upcycled slag from the aluminum industry, utilizing waste materials beneficially.

    Patented Core Technology

    Alta Core Options

    Core Type
    RF Series
    Resin-Reinforced Glass Fiber
    LR Series
    Lava Rock Mineral Wool
    Fire Rating
    ASTM E-84, Class A
    Humidity
    Moisture Resistant
    Low VOC
    CDPH 1350 Compliant
    Superior Acoustics
    BDCv4
    Recycled Material
    MRc4
    30% Post-Consumer
    21% Pre-Consumer
    Price Range
    $$$
    $$

    0.75”
    RF-M19
    LR-M19
    NRC
    ?????? [one-sided products]
    ?????? [one-sided products]
    Weight (lbs/ft²)
    2.2
    2.0
    1”
    RF-M25
    LR-M25
    NRC
    ?????? [one-sided products]
    ?????? [one-sided products]
    Weight (lbs/ft²)
    1.6
    2.3
    1.5”
    RF-M38
    LR-M38
    NRC
    ?????? [one-sided products]
    ?????? [one-sided products]
    Weight (lbs/ft²)
    3.0
    2.8
    2”
    RF-M51
    LR-M51
    NRC
    ??? [one-sided products]
    ??? [one-sided products]
    Weight (lbs/ft²)
    3.3
    3.6

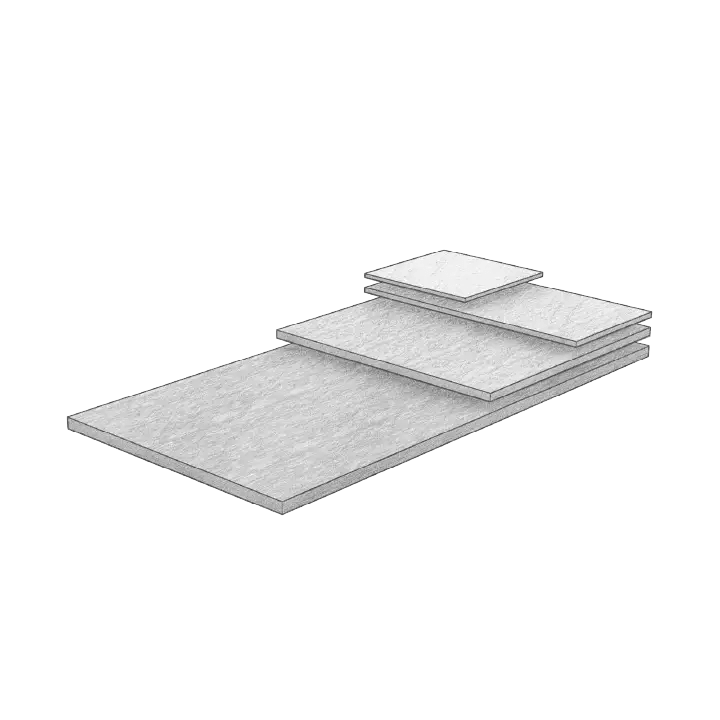

    Standard Sizing

    There are a variety of standardized sizes to suit the needs of different spaces and applications. The range of colors and finishes seamlessly integrate with any interior design. This standardization makes it easy to source, simple to install, and customizable to the unique acoustics of each space. Standard sizes offer an effective, aesthetically pleasing solution for optimizing the soundscape of a room. Custom sizes are available but will cost more and may take longer to manufacture.

    Nominal
    Width: 24”, 30”, 48”, 60”
    Length: 24”, 30”, 48”, 60”, 96”, 120”
    Custom sizing available.
    *144” length subject to veneer availability.

    Alta Ceiling Panels Sizing Options

    Mounting Options

    See hardware details for more options and DWGs.

    Z-Bar Z-Clip
    Torsion Spring
    Grid Clip

    Installation Instructions

    Check out our Alta Instructional Videos

    Ceiling Panels Torsion Spring
    Ceiling Panels Twist Clip
    Ceiling Panels Magnet Holder Video
    Alta Grid Clip Video
    Field Spring Retainer
    Cutting Panels and Planks Video
    Removal Tool for Ceiling Panels Video
    Miter Joint Video
    Edgebanding SoundPly
    More related videos & interactive tools →

    Performance

    Perforations

    MicroPerfection® Technology is a groundbreaking method of sound absorption that increases effectiveness as noise levels rise. The result is a more comfortable, natural feeling environment.

    Patented Sound Reduction Technology

    WELL Building

    CARB Compliant
    CDPH / CHPS 01350 Compliant
    Health Product Declaration (HPD)
    Low Emitting/Low VOC
    Recycled Content – Post-Consumer
    Forest Stewardship Council (FSC) Certified
    Recycled Content

    Sound
      S04 Reverberation Time
      S05 Sound Reducing Surfaces

    Materials
      X05 Enhanced Material Restrictions
      X06 Volatile Organic Compound
      Restrictions

    Light (When integrated with Rensa)
      L04 Electric Light Glare Control
      L08 Electric Light Quality

    LEED Credits

    MRc4 Recycled Content
       LR Series – 21% pre-consumer
       RF Series – 30% post-consumer
    BDCv4  EQ Acoustic Performance
    EQ 4.4 Low Emitting Materials –
       RF Only
    Material Ingredient Disclosure –
       Option 1

    Fire Performance

    SoundPly products satisfy ASTM E84 Class A as well as Canadian ULC S102 fire ratings allowing you to turn down sound and turn up results anywhere in North America.

    Cleanable

    SoundPly products have 3 simple and effective cleaning methods (wipe, spray & UV). Refer to the Maintenance PDF for more details.

    Related Products

    Increase acoustics to amplify wellbeing by marrying related products. Alta ceiling panels, Sero Beams and Cella baffles provide unmatched acoustics and jaw dropping design.

    Integrates with

    Simplify your ceiling space with integrated lighting, bringing together the clean design of wood with acoustics and lighting. A family of uncomplicated solutions that will carry your design intent throughout the space with SoundPly Acoustic Panels and Planks.

    • Praxis Linear Light System

    Save time, hassle and costly rework. Our team coordinates between the architect, lighting designer and installer to provide a project-specific grid layout so everything fits perfectly.

    Experience acoustics in a whole new light at rensalighting.com

    Exterior Options

    Carry your design seamlessly from inside to outside with exterior planks and panels. Perfect for overhangs and breezeways.
