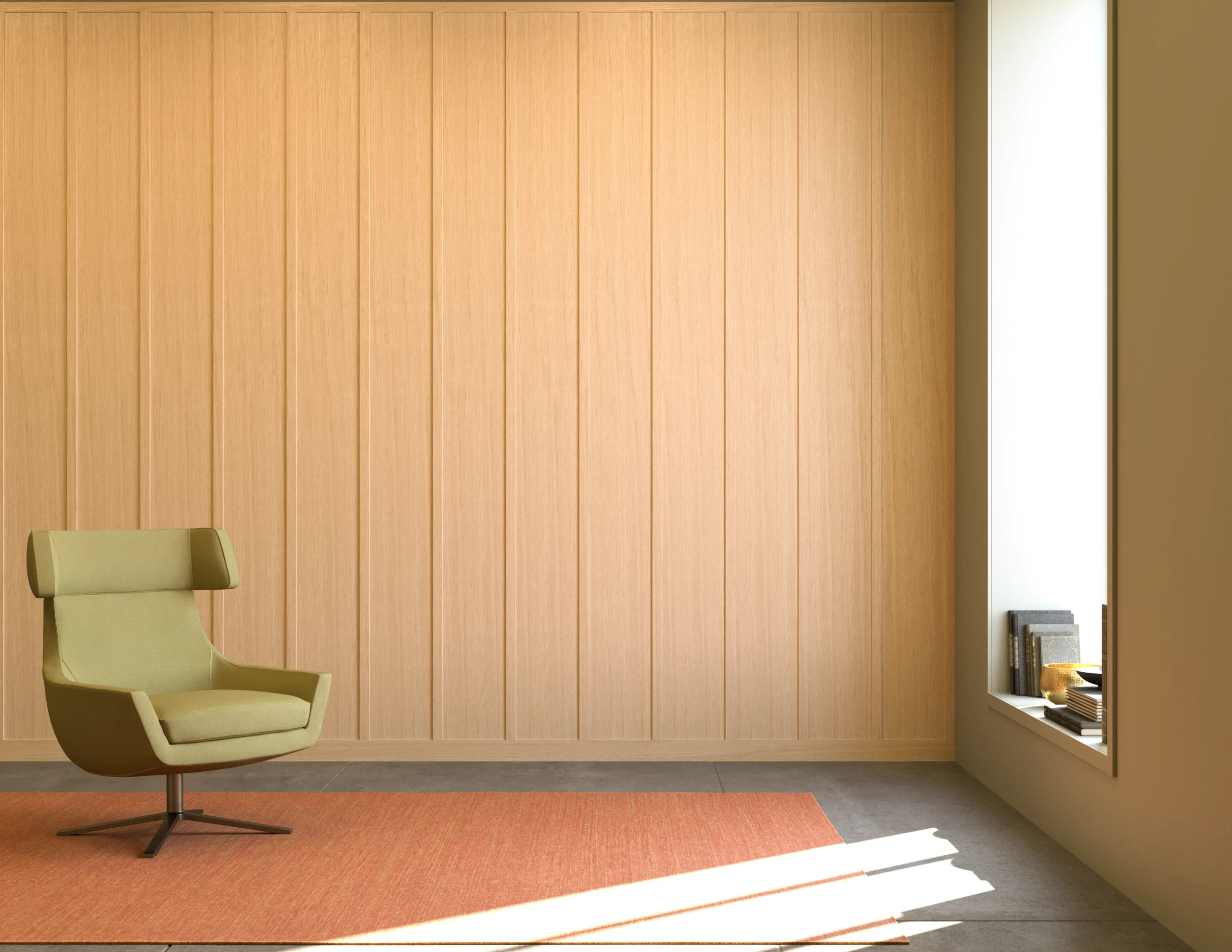

FreeStile Walls
FreeStile Walls provide SoundPly’s patented acoustic performance in an easy-to install, kitted system featuring a panel and frame design. Unlike other SoundPly wall systems, FreeStile’s pre-engineered stile and rail design simplifies specification with standard size panels, reducing lead times to 5 weeks for projects under 5,000 ft2; no shop drawings required. FreeStile achieves an NRC of 0.70 and offers 30 finishes, combining acoustic performance with a timeless aesthetic.
Can’t find a file or document that you are looking for? Contact us.
FreeStile Kits
-
FW 101
Stile Spacing: 24” OC
Rail Spacing: None
Reference Order Sheet for component quantities -
FW 104
Stile Spacing: Equally spaced across wall
Rail Spacing: Equally spaced down wall -
FW 105
Stile Spacing: 48” OC
Rail Spacing: 24” OC from upper and base rails

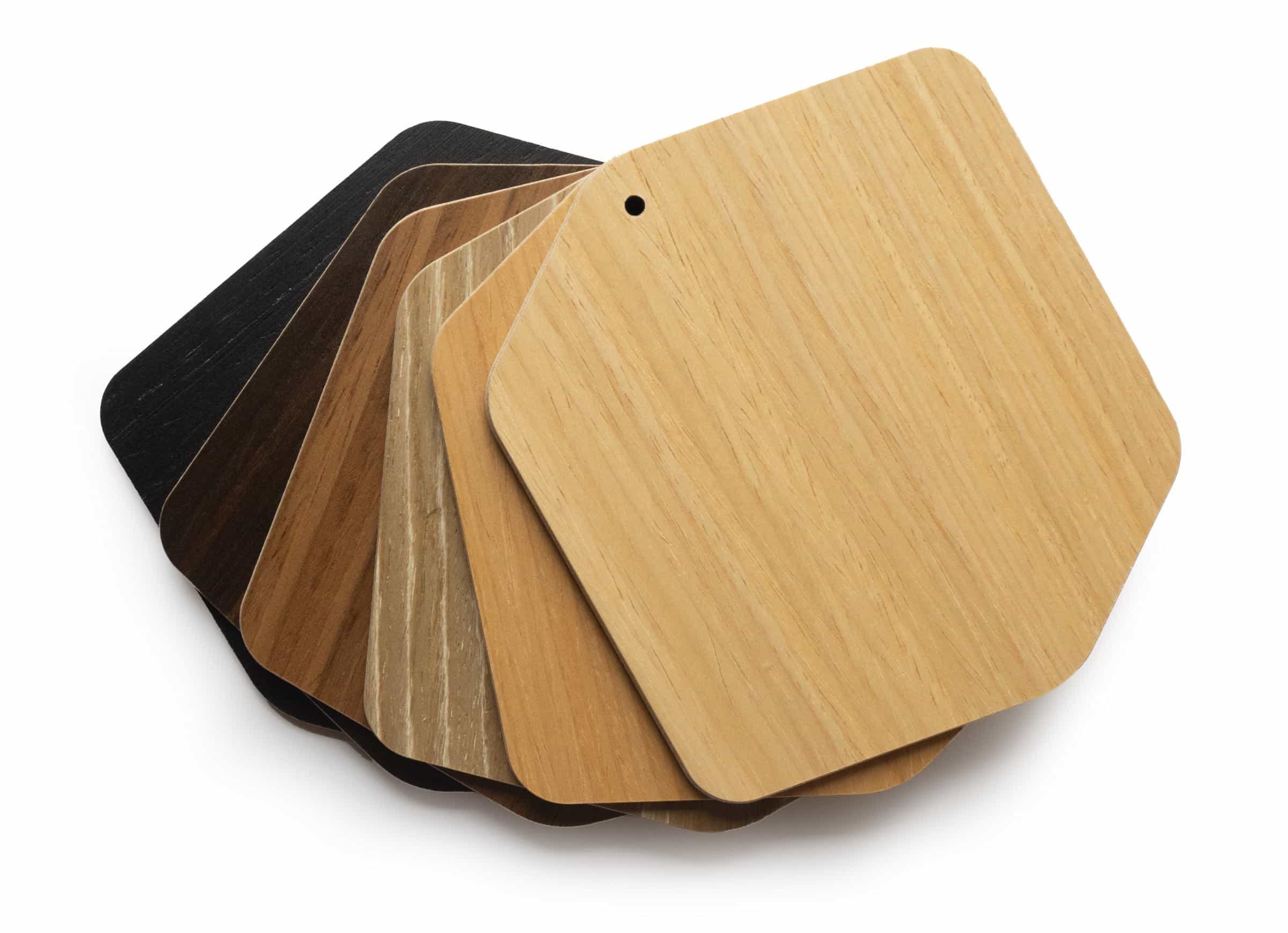

Finish Options from Light to Dark
Choose from 3 wood species, derived from real wood for visual consistency. Each species is available in 10 finish options, providing 30 standard finishes.
Standard Sizing
FreeStile walls have one panel size and include casing, rail, stile, base rail and corner stile.
Installation Instructions
Check out our FreeStile Walls Instructional Videos
Performance
Perforations
MicroPerfection® Technology is a groundbreaking method of sound absorption that increases effectiveness as noise levels rise. The result is a more comfortable, natural feeling environment.
WELL Building
CARB Compliant
S04 Reverberation Time
S05 Sound Reducing Surfaces
X05 Enhanced Material Restrictions
LEED Credits
MRc4 Recycled Content
LR Series – 21% pre-consumer
BDCv4 EQ Acoustic Performance
Material Ingredient Disclosure –
Option 1
Fire Performance
SoundPly products satisfy ASTM E84 Class A as well as Canadian ULC S102 fire ratings allowing you to turn down sound and turn up results anywhere in North America.
Cleanable
SoundPly products have 3 simple and effective cleaning methods (wipe, spray & UV). Refer to the Maintenance PDF for more details.
