Lino
Acoustic Planks
Timeless cost-effective Planks. Planks a lot!
Made from the same real wood and patented core structure as SoundPly panels. Planks provide a high-end look that maximizes budget. Different hardware options along with multiple sizes to choose from enable unfettered design freedom and unmatched sound suppression. The only acoustic planks that offer the option of tight, closed, or open reveals — with no compromise in acoustic performance.
Can’t find a file or document that you are looking for? Contact us.
Veneer. Real Wood.
Classic. Natural. Luxurious. Sustainable. All SoundPly products are made with real wood veneer which is a timeless design element that enhances any room. Our Eureka! Innovation Award winning standards ensure the veneer is perfect in every location and used to its fullest potential. Wood remains the most sustainable building material due to its renewability and biodegradability over time. The enduring appeal increases the likelihood of reuse and extends the product lifecycle, contrasting sharply with the shorter usable life of plastic or faux wood alternatives. Choose from 700+ real wood species, slices, grades, and finishes or match to any paint or stain for practically unlimited possibilities.
Patented SPCore™ Technology Choices
This technology is a combination of pressure and heat to fuse the outer layers to the inner core’s structural components. The result is a uniformly sealed, torsionally rigid, monocoque structure that is remarkably stronger, more stable, and weighs significantly less.
RF Series: The glasswool core is predominantly made from recycled glass and includes a patented, environmentally friendly organic binder, emphasizing our commitment to sustainable production practices.
LR Series: The rockwool core incorporates upcycled slag from the aluminum industry, utilizing waste materials beneficially.
Lino Core Options
Core Type |  RF SeriesResin-Reinforced Glass Fiber |  LR SeriesLava Rock Mineral Wool |
|---|---|---|
Fire RatingASTM E-84, Class A | ||
HumidityMoisture Resistant | ||
Low VOCCDPH 1350 Compliant | ||
Superior AcousticsBDCv4 | ||
Recycled Material
MRc4 | 30% Post-Consumer | 21% Pre-Consumer |
Price Range | $$$ | $$ |
0.75” | RF-M19
| LR-M19
|
NRC | ?????? [one-sided products] | ?????? [one-sided products] |
Weight (lbs/ft²) | 2.2 | 2.0 |
1” | RF-M25 | LR-M25 |
NRC | ?????? [one-sided products] | ?????? [one-sided products] |
Weight (lbs/ft²) | 1.6 | 2.3 |
1.5” | RF-M38 | LR-M38 |
NRC | ?????? [one-sided products] | ?????? [one-sided products] |
Weight (lbs/ft²) | 3.0 | 2.8 |
2” | RF-M51 | LR-M51 |
NRC | ??? [one-sided products] | ??? [one-sided products] |
Weight (lbs/ft²) | 3.3 | 3.6 |

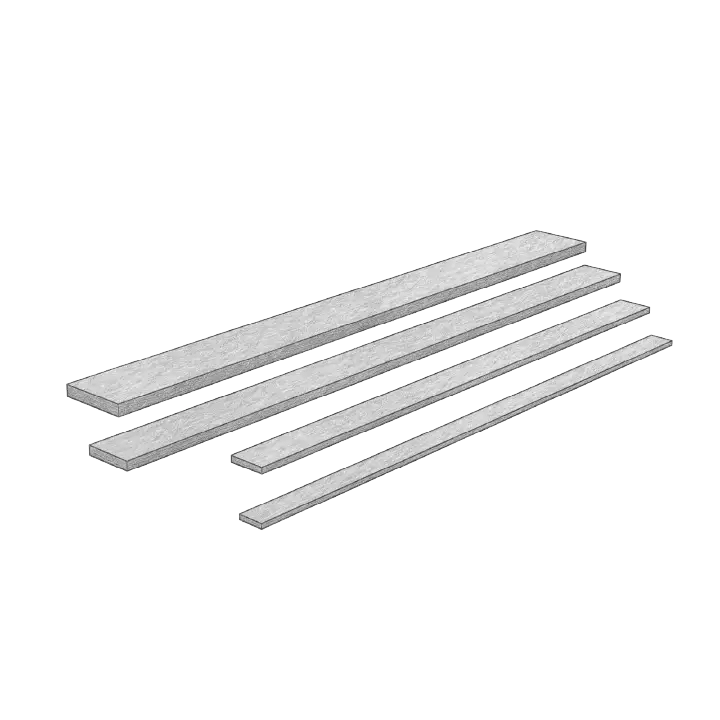

Standard Sizing
There are a variety of standardized sizes to suit the needs of different spaces and applications. The range of colors and finishes seamlessly integrate with any interior design. This standardization makes it easy to source, simple to install, and customizable to the unique acoustics of each space. Standard sizes offer an effective, aesthetically pleasing solution for optimizing the soundscape of a room. Custom sizes are available but will cost more and may take longer to manufacture.
Nominal
Width: 4”, 6”, 8”, 10”, 12”
Length: 96”, 120”
Custom sizing available.
Installation Instructions
-
Interactive – Lino Ceiling Planks
Step by step instructions for SoundPly Lino Planks that click through each phase and show every angle.
Click here to open instructions in a new window. -
Interactive – Ceiling Planks Pulldown Access
Step by step instructions for plank pulldown access with Lino Ceiling Planks that click through each phase and show every angle.
Click here to open instructions in a new window.
Check out our Lino Instructional Videos
Performance
Perforations
MicroPerfection® Technology is a groundbreaking method of sound absorption that increases effectiveness as noise levels rise. The result is a more comfortable, natural feeling environment.
WELL Building
CARB Compliant
CDPH / CHPS 01350 Compliant
Health Product Declaration (HPD)
Low Emitting/Low VOC
Recycled Content – Post-Consumer
Forest Stewardship Council (FSC) Certified
Recycled Content
Sound
S04 Reverberation Time
S05 Sound Reducing Surfaces
Materials
X05 Enhanced Material Restrictions
X06 Volatile Organic Compound
Restrictions
Light (When integrated with Rensa)
L04 Electric Light Glare Control
L08 Electric Light Quality
LEED Credits
MRc4 Recycled Content
BDCv4 EQ Acoustic Performance
EQ 4.4 Low Emitting Materials
MR Recycled Content
MR Material Ingredients
EA Optimized Energy Performance
EQ Enhanced Acoustical Performance
EQ Interior Lighting
EQ Daylight
EQ Low Emitting Materials (RF core)
Fire Performance
SoundPly products satisfy ASTM E84 Class A as well as Canadian ULC S102 fire ratings allowing you to turn down sound and turn up results anywhere in North America.
Cleanable
SoundPly products have 3 simple and effective cleaning methods (wipe, spray & UV). Refer to the Maintenance PDF for more details.
Related Products
Increase acoustics to amplify wellbeing by marrying related products. Lino planks paired with Sero beams create a breathtaking ceiling. Carry your design and flow outside with exterior planks.
Integrates with
Simplify your ceiling space with integrated lighting, bringing together the clean design of wood with acoustics and lighting. A family of uncomplicated solutions that will carry your design intent throughout the space with SoundPly Acoustic Panels and Planks.
- Praxis Linear Light System
Save time, hassle and costly rework. Our team coordinates between the architect, lighting designer and installer to provide a project-specific grid layout so everything fits perfectly.
Experience acoustics in a whole new light at rensalighting.com
Exterior Options
Carry your design seamlessly from inside to outside with exterior planks and panels. Perfect for overhangs and breezeways.
KeepsClean
A hospital grade finish that withstands stringent cleaning protocols. No streaks or discoloration. Exceeds CDC and EPA healthcare facility guidelines. Available for all SoundPly products in your choice of clear, stain and paint finishes, with a range of sheen options.
