One of a Kind. Kind of Amazing. Disrupt the status quo.
Layers of patented technology with real wood veneer deliver the world’s best sound absorbing performance. Unmatched micro-perforations are indistinguishable at a normal viewing distance providing a discreet acoustic appearance ensuring a statement feature wall. Acoustic performance guaranteed to be accurate and reliably reproducible in real-world installations. Simple, intuitive installation using Z-clips direct to wall secure no lost extra space.
Can’t find a file or document that you are looking for? Contact us.
This technology is a combination of pressure and heat to fuse the outer layers to the inner core’s structural components. The result is a uniformly sealed, torsionally rigid, monocoque structure that is remarkably stronger, more stable, and weighs significantly less.
RF Series: The glasswool core is predominantly made from recycled glass and includes a patented, environmentally friendly organic binder, emphasizing our commitment to sustainable production practices.
LR Series: The rockwool core incorporates upcycled slag from the aluminum industry, utilizing waste materials beneficially.
Core Type | RF Series Resin-Reinforced Glass Fiber | LR Series Lava Rock Mineral Wool |
---|---|---|
Fire Rating ASTM E-84, Class A | ||
Humidity Moisture Resistant | ||
Low VOC CDPH 1350 Compliant | ||
Superior Acoustics BDCv4 | ||
Recycled Material
MRc4 | 30% Post-Consumer | 21% Pre-Consumer |
Price Range | $$$ | $$ |
0.75” | RF-M19
| LR-M19
|
NRC | ?????? [one-sided products] | ?????? [one-sided products] |
Weight (lbs/ft²) | 2.2 | 2.0 |
1” | RF-M25 | LR-M25 |
NRC | ?????? [one-sided products] | ?????? [one-sided products] |
Weight (lbs/ft²) | 1.6 | 2.3 |
1.5” | RF-M38 | LR-M38 |
NRC | ?????? [one-sided products] | ?????? [one-sided products] |
Weight (lbs/ft²) | 3.0 | 2.8 |
2” | RF-M51 | LR-M51 |
NRC | ??? [one-sided products] | ??? [one-sided products] |
Weight (lbs/ft²) | 3.3 | 3.6 |

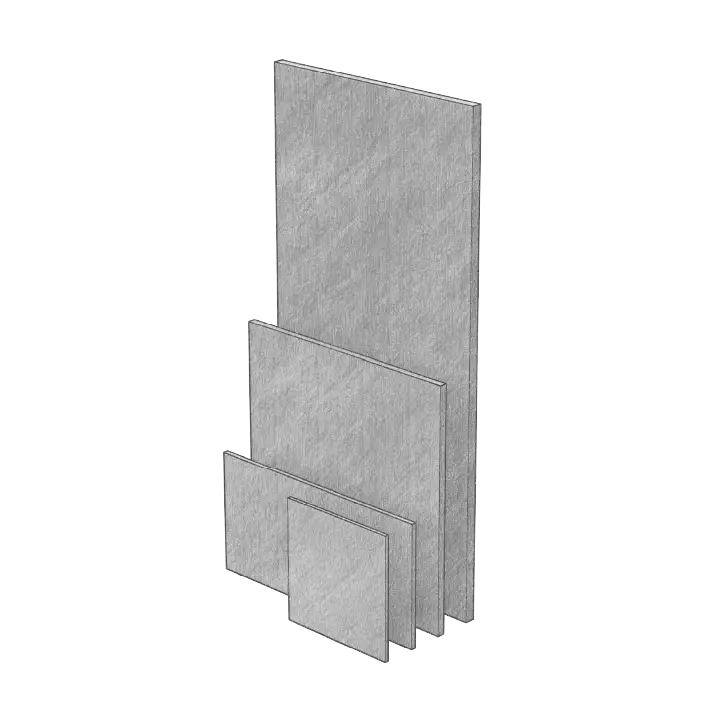

There are a variety of standardized sizes to suit the needs of different spaces and applications. The range of colors and finishes seamlessly integrate with any interior design. This standardization makes it easy to source, simple to install, and customizable to the unique acoustics of each space. Standard sizes offer an effective, aesthetically pleasing solution for optimizing the soundscape of a room. Custom sizes are available but will cost more and may take longer to manufacture.
Nominal
Width: 24”, 30”, 48”, 60”
Length: 24”, 30”, 48”, 60”, 96”, 120”
Custom sizing available.
*144” length subject to veneer availability.
Step by step instructions for SoundPly Latus Panels that click through each phase and show every angle.
Click here to open instructions in a new window.
MicroPerfection® Technology is a groundbreaking method of sound absorption that increases effectiveness as noise levels rise. The result is a more comfortable, natural feeling environment.
CARB Compliant
CDPH / CHPS 01350 Compliant
Health Product Declaration (HPD)
Low Emitting/Low VOC
Recycled Content – Post-Consumer
Forest Stewardship Council (FSC) Certified
Recycled Content
Sound
S04 Reverberation Time
S05 Sound Reducing Surfaces
Materials
X05 Enhanced Material Restrictions
X06 Volatile Organic Compound
Restrictions
MRc4 Recycled Content
BDCv4 EQ Acoustic Performance
EQ 4.4 Low Emitting Materials
MR Recycled Content
MR Material Ingredients
EA Optimized Energy Performance
EQ Enhanced Acoustical Performance
EQ Interior Lighting
EQ Daylight
EQ Low Emitting Materials (RF core)
SoundPly products satisfy ASTM E84 Class A as well as Canadian ULC S102 fire ratings allowing you to turn down sound and turn up results anywhere in North America.
SoundPly products have 3 simple and effective cleaning methods (wipe, spray & UV). Refer to the Maintenance PDF for more details.
Increase acoustics to amplify wellbeing by marrying related products. Latus wall panels combined with Lino planks or Infinio wall fins ensure a unique look with superpowered acoustics.
Simplify your ceiling space with integrated lighting, bringing together the clean design of wood with acoustics and lighting. A family of uncomplicated solutions that will carry your design intent throughout the space with SoundPly Acoustic Panels and Planks.
Save time, hassle and costly rework. Our team coordinates between the architect, lighting designer and installer to provide a project-specific grid layout so everything fits perfectly.
Experience acoustics in a whole new light at rensalighting.com
A hospital grade finish that withstands stringent cleaning protocols. No streaks or discoloration. Exceeds CDC and EPA healthcare facility guidelines. Available for all SoundPly products in your choice of clear, stain and paint finishes, with a range of sheen options.
