Sero Acoustic Beams

Sero

Acoustic Beams

Acoustic Mastery, Reshaped.

A timber beam capable of efficiently absorbing sound and changing the shape of acoustic possibilities. Highest NRC rating among acoustic products. Absorbs sound on three sides (fourth side option available). Sound absorption actually increases as noise levels rise. Patented core and box construction make it stronger, while weighing significantly less than traditional lumber beams. Variety of mounting options like direct to ceiling, suspended by cables, or attach to grid. Easily customize and even use as a sound-absorbent, acoustic shell.

A beam of lightness.

Documents

    CAD & Details

    Files coming soon.

      Can’t find a file or document that you are looking for? Contact us.

      Patented SPCore™ Technology Choices

      This technology is a combination of pressure and heat to fuse the outer layers to the inner core’s structural components. The result is a uniformly sealed, torsionally rigid, monocoque structure that is remarkably stronger, more stable, and weighs significantly less.

      RF Series: The glasswool core is predominantly made from recycled glass and includes a patented, environmentally friendly organic binder, emphasizing our commitment to sustainable production practices.

      LR Series: The rockwool core incorporates upcycled slag from the aluminum industry, utilizing waste materials beneficially.

      Patented Core Technology

      Sero Core Options

      Core Type
      RF Series
      Resin-Reinforced Glass Fiber
      LR Series
      Lava Rock Mineral Wool
      Fire Rating
      ASTM E-84, Class A
      Humidity
      Moisture Resistant
      Low VOC
      CDPH 1350 Compliant
      Superior Acoustics
      BDCv4
      Recycled Material
      MRc4
      30% Post-Consumer
      21% Pre-Consumer
      Price Range
      $$$
      $$

      0.75”
      RF-M19
      LR-M19
      NRC
      ?????? [one-sided products]
      ?????? [one-sided products]
      Weight (lbs/ft²)
      2.2
      2.0
      1”
      RF-M25
      LR-M25
      NRC
      ?????? [one-sided products]
      ?????? [one-sided products]
      Weight (lbs/ft²)
      1.6
      2.3
      1.5”
      RF-M38
      LR-M38
      NRC
      ?????? [one-sided products]
      ?????? [one-sided products]
      Weight (lbs/ft²)
      3.0
      2.8
      2”
      RF-M51
      LR-M51
      NRC
      ??? [one-sided products]
      ??? [one-sided products]
      Weight (lbs/ft²)
      3.3
      3.6

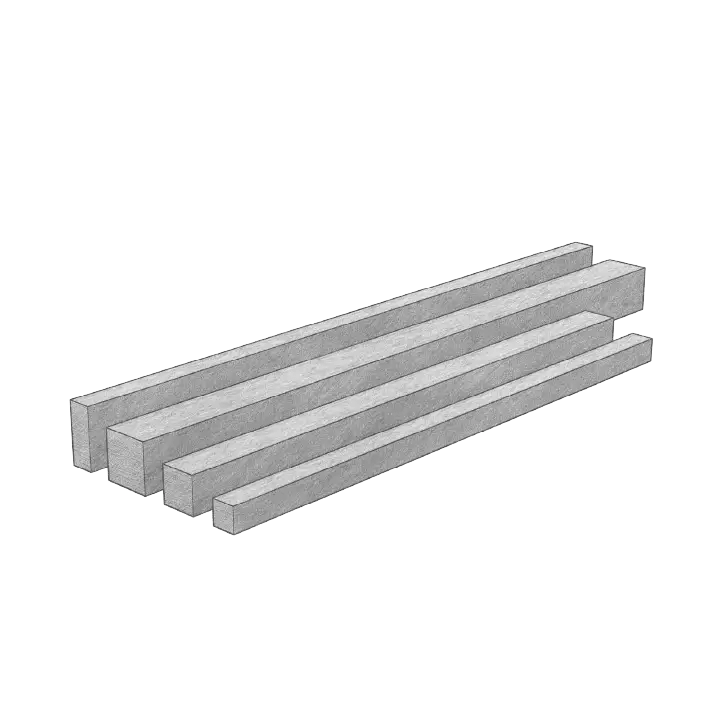

      Standard Sizing

      There are a variety of standardized sizes to suit the needs of different spaces and applications. The range of colors and finishes seamlessly integrate with any interior design. This standardization makes it easy to source, simple to install, and customizable to the unique acoustics of each space. Standard sizes offer an effective, aesthetically pleasing solution for optimizing the soundscape of a room. Custom sizes are available but will cost more and may take longer to manufacture.

      4”x10”, 8”x8”, 6”x6”, 4”x4” (First number is end profile)
      Lengths: 96”, 120”
      Custom sizes available.

      Sero Beams Sizing Options

      Installation Instructions

      Check out our Sero Instructional Videos

      Edgebanding SoundPly
      SoundPly Repair - Handy Hacks Video
      More related videos & interactive tools →

      Performance

      Perforations

      MicroPerfection® Technology is a groundbreaking method of sound absorption that increases effectiveness as noise levels rise. The result is a more comfortable, natural feeling environment.

      Patented Sound Reduction Technology

      WELL Building

      CARB Compliant
      CDPH / CHPS 01350 Compliant
      Health Product Declaration (HPD)
      Low Emitting/Low VOC
      Recycled Content – Post-Consumer
      Forest Stewardship Council (FSC) Certified
      Recycled Content

      Sound
        S04 Reverberation Time
        S05 Sound Reducing Surfaces

      Materials
        X05 Enhanced Material Restrictions
        X06 Volatile Organic Compound
        Restrictions

      LEED Credits

      MRc4 Recycled Content
         LR Series – 21% pre-consumer
         RF Series – 30% post-consumer
      BDCv4  EQ Acoustic Performance
      EQ 4.4 Low Emitting Materials –
         RF Only
      Material Ingredient Disclosure –
         Option 1

      Fire Performance

      SoundPly products satisfy ASTM E84 Class A as well as Canadian ULC S102 fire ratings allowing you to turn down sound and turn up results anywhere in North America.

      Cleanable

      SoundPly products have 3 simple and effective cleaning methods (wipe, spray & UV). Refer to the Maintenance PDF for more details.

      Related Products

      Increase acoustics to amplify wellbeing by marrying related products. Sero beams when paired with Lino planks or Alta Panels provide next level looks and unrivaled acoustics.
